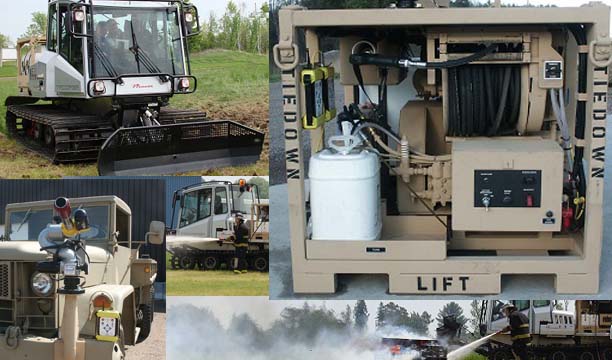

Rapid-Extinguishing-Fire-Fighting-System (REFFS)

Performance

Water Delivery: 16 gpm
Foam: 1 to 5% - Adjustable
Delivery Pressure: 1500 psi
Duration: 10 min (130 gal water tank)
Extinguishing Stream Range: 6 to 70 feet
Foam Delivery: 1300 to 2600 gal per 130 gal tank
Wireless RF Operating Range: 350 feet
Electrical System: 24 VDC, SAE J1939 CTRL
Hand Nozzle: 3-Position Barrel Throw-Spray-Foam
Power: 21.7 hp KUBOTA diesel engine

Weight

REFFS (dry): 1660 lb (steel skid)
REFFS (wet): 2900 lb (steel skid)
REFFS (dry): 1260 lb (aluminum skid)
REFFS (wet): 2484 lb (aluminum skid)

Dimension

Overall Dim (L x W x H): 82 in x 45 in x 60 in
Footprint: 80 in x 44 in
Ship Dim: (L x W x H): 82 in x 45 in x 60 in
Volume (at shipping dimension): 128 cuft
Base Area: 25.63 square feet
Hand-line: 150 feet (optional 300 feet) w/ power rewind

System Fluid Capacity

Water Tank: 130 gal
Foam: 2 x 5 gal
Fuel: 2 x 5.3 gal (DF1/DF2/DFA/JP8)
Engine Crankcase (OE): 1.3 gal

Options

Seamless Vehicle/Trailer Integration
Integrated Water Tank
Remote Water Pick-up/Supply
Lightweight Aluminum Alloy Frame
Artic Kit
Wireless/Hardwire Controlled Remote Bumper Turret
